Description

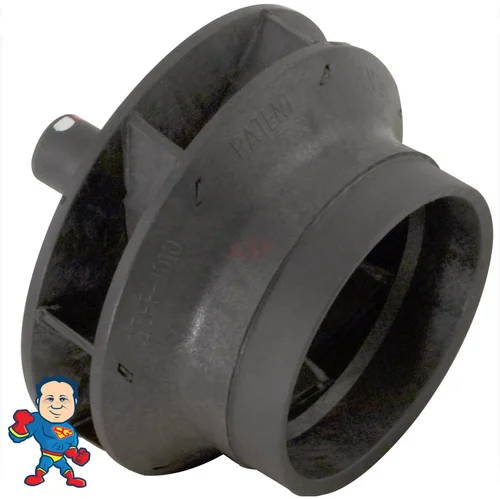

This genuine Aqua-Flo closed face impeller is engineered specifically for XP3 2.5HP spa pumps with 2 1/2″ inlet and 2 1/2″ outlet configurations. The impeller measures approximately 3 9/16″ across the threads and is designed to work with 10-12 amp motors rated at 2.5HP or higher.
This replacement component must be installed on a thru bolt motor and is compatible exclusively with XP3 wet end assemblies. The closed face design ensures optimal water flow and pressure for your hot tub circulation system.
Technical Specifications:Impeller Type: Closed FaceImpeller Diameter OD: 3-11/16″Vane Width ID: 1/2″Eye Diameter OD: 2-5/8″Eye Length: 7/8″Impeller Width OD: 3/4″Seal Seat Depth: 1/8″Shaft Length: 1-5/8″Shaft Diameter OD: 5/8″Seal Seat Diameter OD: 1-1/4″Manufacturer: AquaFlo/GeckoPump Application: XP3
Seal kits and bearing kits are available separately for complete pump maintenance and restoration.
