Description
Features & Benefits:
- ALI Certified Lift
- 9,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height 111 1/8″ (9′ 3 1/8″)
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- Dual Point Lock Release
- Thick Rubber Door Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Powder Coat Finish
- Includes Double Screw-up Adapters
- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- Shipping Weight: 1,700 lbs.
- 5 Year Structural Warranty/2 Year Hydraulic Warranty/2 Year Powerunit Warranty
- Freight Prepaid
- AP-PVL9BP-3 (Manufacturer Part )

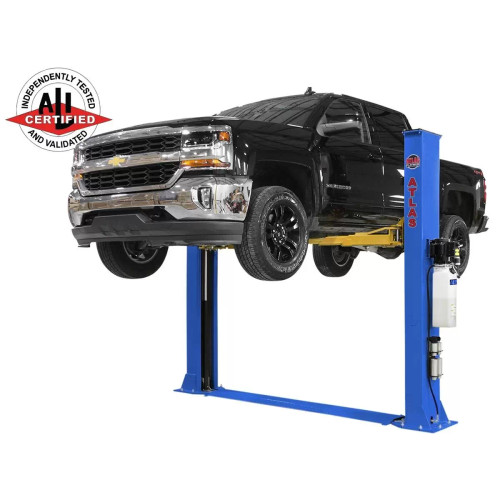

The Atlas® Platinum AP-PVL9BP baseplate lift is designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don’t want to worry about the limitations of a top beam. The AP-PVL9BP can lift a wide range of the most common cars on the market, foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles.
The Platinum AP-PVL9BP is also ALI certified and backed by one of the Industry’s best warranties for an added piece of mind.
The Platinum AP-PVL9BP comes with a premium ALLY Hydraulic power unit, these units are certified by MET Laboratories to meet UL201 compliance standards. The ALLY power unit also features:
- 2.1 Gallons per Minute flow rate
- 208 – 230 volt single phase (60 Hz).
- 2 hp 3450 rpm motor (3.5 hp motor torque equivalent).
- 3.5 – Gallon opaque high-density plastic tank
- Pressure settings from 2300 to 3500 PSI.
- Extra-large junction box for easy installation
- Extra Heavy-Duty Honeywell BE22Q1-AL off/on switch.
- Suction tube micro screen filter
- Atlas® AP-PVL9BP Specifications::
-
- Capacity: 9000 lbs
- Overall Height: 111 1/8″ (9′ 3 1/8″)
- Overall Floor Width: 138 5/8″ (11′ 6 5/8″)
- Outside Columns: 127 1/2″ (10′ 7 1/2″)
- Inside Column Width: 111 3/8″ (9′ 3 3/8″)
- Drive Thru: 97 5/8″
- Max Lift Height w/o Adapters: 74 3/4″
- Max Lift height w/ Adapters: 83 3/4″
- Minimum Arm Height: 4 1/2″
- Column Size: 7 5/8″ x 14 1/4″
- Base of Column: 19 1/2″ x 20 1/2″
- Column Steel Thickness: 6mm
- Arm Steel Thickness: 6mm
- Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
- Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)
- Shipping Weight: 1700 lbs
- Adapter Heights: 4 Each 3″, 6″
- Arm Hole/Adapter Peg Size: 2″
