Important Notes About Ordering Coates Heaters
Coates heaters are a made-to-order product. When you order your Coates heater from EZ Pool & Spa Supply, we’ll confirm a lead time with the manufacturer which typically can range up to 12-14 weeks.
EZ Pool & Spa Supply cannot fulfill orders for Coates heaters in the following states: Washington, Oregon, Idaho, California. Any orders placed within these states will be canceled and refunded.

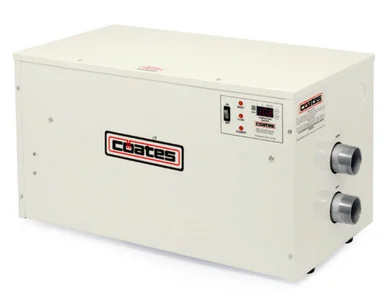

Coates PHS Series Electric Pool & Spa Heater 36KW, 480V, 44A, Three Phase, 34836PHS-3
The Coates PHS Series pool and spa heaters feature a flow switch to prevent operation when there is no water flow. An all stainless steel tank for long life and corrosion resistance is also standard. Our 36-57kw heaters now include a digital thermostat for more precise control of pool water temperature.
Features
- Incoloy heating elements
- Digital thermostat
- Manual reset high temp limit
- Flow switch
- 2″ male NPT connections
- Heavy duty contactors
- Stainless steel tank
- Element, flow and high temp “on” lights
- Element fusing on units rated over 48 amp
Technical Data
- 28”L x 15”W x 15”H (100 lbs)
- Min Flow Rate: 20 GPM
- Max Flow Rate: 80 GPM
- Three phase
- UL Listed for indoor/outdoor installation
Specifications
| Amperage Draw | 44 A |
| Brand | Coates |
| Cabinet Depth | 15 Inch |
| Cabinet Height | 28 Inch |
| Cabinet Width | 15 Inch |
| Flow Rate | 20 – 80 gpm |
| Heat Output | 36 kW |
| Item | Electric Heater |
| Phase | 3-Phase |
| Series | PHS |
| Voltage Rating | 480 V |
| Water Connection | 2 Inch MNPT |
