Description

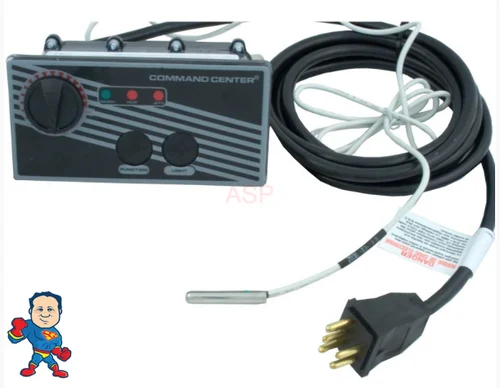

This versatile universal replacement kit accommodates 2, 3, or 4 button pneumatic topside controls without temperature display functionality, designed for analog air-activated systems running on 115V with 10ft cable and overlay sheet (also known as Command Center). Each kit includes a 4-button control panel, two nylon spacer inserts for deactivating unused buttons, and multiple overlay label options for 2, 3, and 4 button setups to match various pump, blower, and lighting arrangements. Capillary tube measures 48 inches in length. Compatible with pneumatic-style control systems found in Jacuzzi Whirlpool, Blue Ridge, Gatsby, and numerous other spa manufacturers. Features a 5-pin round connector, overlay decal, temperature sensor assembly with cable, and sensing bulb for installation in either a thermowell or heater pinch plate location.
Available exclusively in 115v configuration; the 230V option has been discontinued.
Command Center Universal Kit DetailsThis adaptable Command Center spaside control solution installs in 2, 3, or 4 button configurations, reducing inventory requirements across multiple job types. Kits contain a 4-button controller, two nylon button-blocking spacers, and assorted 2, 3, and 4 button label selections. Capillary tube length: 48 inches.Important: Retrofit kit Black Out Plate HTP58-319-1090 remains necessary when replacing earlier 3 and 4 button 8000 or 9000 series Command Center modelsManufacturer: Tridelta, TecmarkModel: Command Center of Buttons: 2, 3 or 4Voltage: 115vHole Size: 5-5/8″ x 2-1/2″Overlay Dimension: 6-3/8″ x 3-1/8″Panel Size: 6-1/2″ x 3-1/4″Cord Length: 10ftBulb Size: 5/16″Capillary Length: 48″CC2-120-06-1-00 or CC2-120-06-X-00 (see Note 2 and 3), CC2-240-06-1-00 or CC2-240-06-X-00 (see Note 2 and 3), 3-10-0040 or CC2-120-10-1-00 or CC2-120-10-X-00 (see Note 2 and 3), CC2-240-10-1-00 or CC2-240-10-X-00
