Description

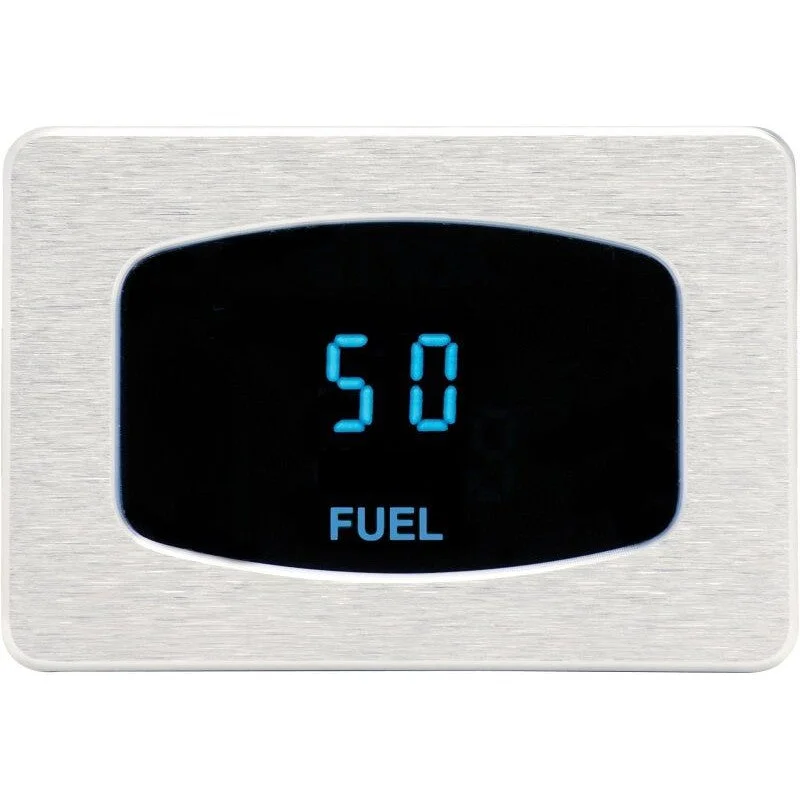

Dakota Digital Odyssey Series I Fuel Level Gauge – ODY-06-1
Dakota Digital revives the Odyssey Series I of digitalinstrumentation! The re-engineered Odyssey Series I instruments areupdated to the newest technology, offering fully machined aluminumhousings, backlit annunciators for a completely “blacked out” look whenoff, fully adjustable warning indicators, and a host of additionalfeatures to truly revolutionize the industry once again!
Dakota Digital Odyssey Series I instruments offer a high brightness, *non-glarevacuum fluorescent display for excellent daytime visibility and alifetime of trouble free use. Odyssey Series I instruments are fullybacked by a Limited 24-month Warranty against manufacturer defects and provide the accuracy and performance you’ve come to expect from Dakota Digital!
Range: 0- 99%
- Choice of either Teal or Blue display.
- Choice of either Satin or Chrome bezel.
- Machined aluminum bezel and housing.
* Non-glare lens option available on Teal display only.
Gauge preset to work with the following fuel senders resistance ranges:
Sender TypeEmpty Resistance Full Resistance
GM30 0ohms30ohms
GM90 0ohms90ohms
GM25040ohms250ohms
Ford1073ohms10ohms
Ford15020ohms150ohms
VDO 10ohms180ohms
Stewart Warner/Sun240ohms33ohms
Import112ohms 4ohms
Sensor SEN-06-1 available for universal applications, fits most fuel tanks (not included but can be purchased separately in our store).
Don’t forget: When making your payment, please specify which bezel (satin or chrome) and which display color (teal or blue) you want.
Brand: Dakota Digital
Part Number: ODY-06-1
