Description

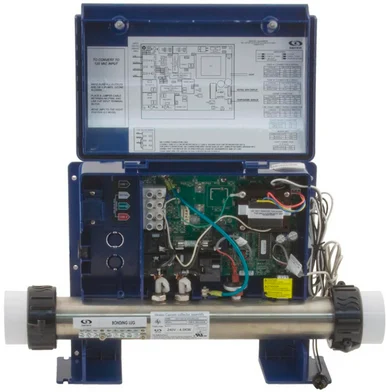

Gecko S-Class Spa Pak 0202-205212. This spa pack has been discontinued by the manufacturer. Please see BDLYJ3K300.
Operates a single pump, circ pump, ozonator, LS and includes 4kW heater. With J&J connections (does not include receptacles).
Dual voltage – S-Class Spa Control Box.
This spa pack operates with TSC-9, TSC-18 or TSC-19 keypads (with 1 pump overlay) (sold separately as needed).
SC-CF-P12-O-CP-LH-H4.0-U-GE1
This S-Class spa control system comes without receptacles. Remove the receptacles from the existing spa pack and install on this replacement pack.
Width is 14 1/4 inches and height is 11 1/2 inches. This control box is 3 3/8 inches deep.
Circ pump ready (optional 115v/230v)
- Automatic time-out on all outputs
- Sensor failure detection
- Ozone management
- Programmable filter cycles
- High-limit protection
- Pressure switch failure detection
- Current limiting option
- Smart Winter Mode
- Temp. accuracy within ± 1°F
- Filter cycle over temp protection
- Does not use connector/connects direct to PWA
- Manufacturer’s Warranty
Replaces 0202-205212 , 0202-205001 , 0202-205006 , 0202-205007 , 0202-205009 , 0202-205014 , 0202-205016 , 0202-205019 , 0202-205021 , 0202-205023 , 0202-205033 , 0202-205035 , 0202-205037 , 0202-205047 , 0202-205049 , 0202-205050 , 0202-205051 , 0202-205052 , 0202-205055 , 0202-205060 , 0202-205061 , 0202-205066 , 0202-205073 , 0202-205077 , 0202-205078 , 0202-205081 , 0202-205099 , 0202-205100 , 0202-205108 , 0202-205112 , 0202-205119 , 0202-205129 , 0202-207001 , 0202-207003 , 0202-207006 , 0202-207007 , 202205212.
Gecko SSPA, 1.0/4.0kW, Pump1, does not include Receptacles, Cords or Control Panel.
No Receptacles – Component Cords Not Included
Enclosure – Plastic – 14.25″ x 11.5″ x 3.38″ WxHxD
Sensors – Included
Keypad – Not IncludedSystem Works With The Following Keypads -TSC-9 – 0202-007154 – Use adapter plate – 9917-102053 – 8-3/16″ x 3-1/16″ODTSC-18 – 0202-007134 – Use adapter plate – 9917-102053 – 8-3/16″ x 3-1/16″ODTSC-19 – No Longer Available
Heater Style – Flow Thru (Fixed)Wattage – 1.0/4.0kWHeater Measurements – 2″ x 15″
System Voltage – 120/240V (Neutral Required)
Component Configuration – 120v/240v – Pump1 (1spd or 2spd) + Circ (Configurable with 1spd Pump1) + Ozone
Included With System – 4.0kw Heater & Sensors
