Product SpecificationsShipping Cost:Calculated at CheckoutWeight:3.56 LBSGTIN:753610336204MPN:39-2582-07SKU:39-2582-07Warranty:1 year warranty from the manufacturerproduct Details

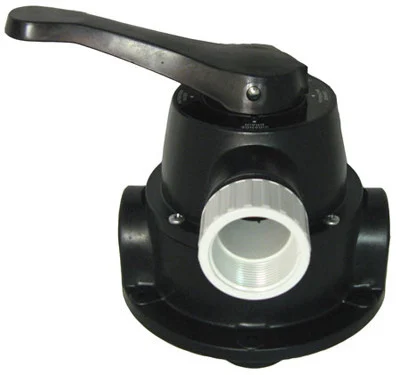

HAYWARD | VALVE, DIAL 4 POSITION – BOLT ON | 39-2582-07
THIS IS A Jacuzzi® TOP MOUNT VALVE, DVK-4 INCLUDES: (1) 4727- BACK MOUNT PRESSURE GAUGE (6) 4626-02 BOLT, VALVE TO FILTER (1) 4631-14 GASKET, VALVE TO FILTER (1) VALVE ITSELF
TOP MOUNT VALVE, BOLTS ON WITH 6 BOLTS BOTTOM FLANGE DIAMETER: 7-1/2″
VALVE POSITIONS (CLOCKWISE FROM TOP) STARTING ABOVE THE WASTE PORT BACKWASH, DRAIN, FILTER, WHIRLPOOL, WINTERIZE
ALL PORTS ARE 1-1/2″ MPT, ARRANGED AS FOLLOWS 1ST SIDE – WASTE PORT 2ND SIDE – PUMP PORT 3RD SIDE – RETURN PORT
