Description

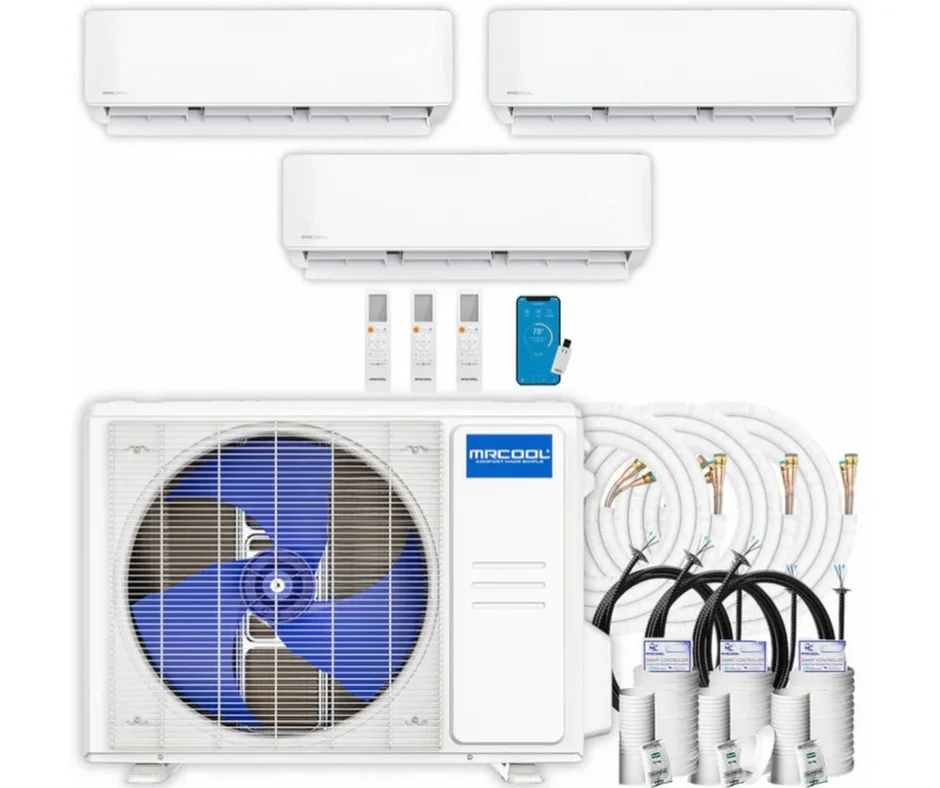

MRCOOL DIY 5th Gen 36k 3-Zone 23 SEER2 (6K + 6K + 24K) Ductless Mini Split Air Conditioner & Heat Pump DIYM336HPW02D00
The MRCOOL DIY 5th Gen 36k 3-Zone Mini Split System is designed to deliver powerful, efficient heating and cooling for up to three separate spaces. This system features a 36,000 BTU outdoor condenser paired with two 6,000 BTU and one 24,000 BTU wall-mounted indoor air handlers, allowing independent temperature control across multiple rooms for customized comfort.
Built for true do-it-yourself installation, the system includes pre-charged QuickConnect® line sets and DIYPRO® cable, eliminating the need for specialized HVAC tools or professional installation. With a high 23 SEER2 efficiency rating and inverter-driven compressor technology, it provides reliable performance while helping reduce energy consumption.
The system supports smart home integration through built-in Wi-Fi compatibility, allowing control via the Smart HVAC Controller App as well as voice control through Alexa and Google Home. Corrosion-resistant Gold Fin® coating enhances durability, making this system suitable for long-term residential use.
Features
- 36,000 BTU total system capacity
- 3 independently controlled comfort zones
- (2) 6K + (1) 24K BTU wall-mounted air handlers
- 23 SEER2 high-efficiency rating
- DC inverter variable-speed compressor
- DIY® QuickConnect® pre-charged line sets
- 16-ft line-set reach included
- DIYPRO® cable (no conduit required)
- Gold Fin® anti-corrosion protection
- Follow Me® remote-based temperature sensing
- MRCOOL® Smart HVAC Controller® App
- Alexa® & Google Home® compatibility
- ENERGY STAR® & AHRI certified
Specifications
| Specification | Details |
|---|---|
| Brand | MRCOOL |
| Series | DIY 5th Gen Multi-Zone |
| Model Number | DIYM336HPW02D00 |
| System Capacity | 36,000 BTU |
| SEER2 Rating | 23 |
| Number of Zones | 3 |
| Indoor Unit Capacities | (2) 6,000 BTU / (1) 24,000 BTU |
| Outdoor Condenser Model | DIY-MULTI5-36HP230D-O |
| Voltage | 208/230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Minimum Circuit Ampacity | 30.5 A |
| Maximum Breaker Size | 35 A |
| Refrigerant Type | R-454B |
| Line Sets Included | (3) × 16 ft |
| 6K Indoor Unit Dimensions (W×D×H) | 31.57″ × 7.44″ × 11.69″ |
| 6K Indoor Unit Weight | ~24.5 lbs |
| 24K Indoor Unit Dimensions (W×D×H) | 42.52″ × 8.90″ × 13.19″ |
| 24K Indoor Unit Weight | ~35.9 lbs |
| Outdoor Unit Dimensions (W×D×H) | 37.24″ × 16.14″ × 31.89″ |
| Outdoor Unit Weight | ~169 lbs |
| Certifications | ENERGY STAR®, AHRI, UL Listed, ETL Listed |
| Smart Control | Wi-Fi App, Alexa, Google Home |
| Corrosion Protection | Gold Fin® |
| Warranty Coverage | 5-Year Parts, 7-Year Compressor |
What’s Included
- ✔ MRCOOL® DIY® 36,000 BTU Multi-Zone Outdoor Condenser
- ✔ (2) 6,000 BTU Wall-Mounted Indoor Air Handlers
- ✔ (1) 24,000 BTU Wall-Mounted Indoor Air Handler
- ✔ (2) 16-ft DIY® QuickConnect® Line Sets (1/4 × 3/8)
- ✔ (1) 16-ft DIY® QuickConnect® Line Set (3/8 × 5/8)
- ✔ DIYPRO® communication cable
- ✔ Wireless remotes for each indoor unit
- ✔ Mounting hardware & installation manuals
Frequently Asked Questions (FAQ’s)
Can I upgrade the line-set length later?
Yes. Longer DIY® QuickConnect® line sets are available separately if additional reach is required.
Does each room operate independently?
Yes. Each indoor unit has its own thermostat and control.
Is professional HVAC installation required?
No. This system is specifically engineered for DIY installation.
Does this system support smart controls?
Yes. Fully compatible with Alexa®, Google Home®, and the MRCOOL® Smart HVAC Controller® App.
