Description

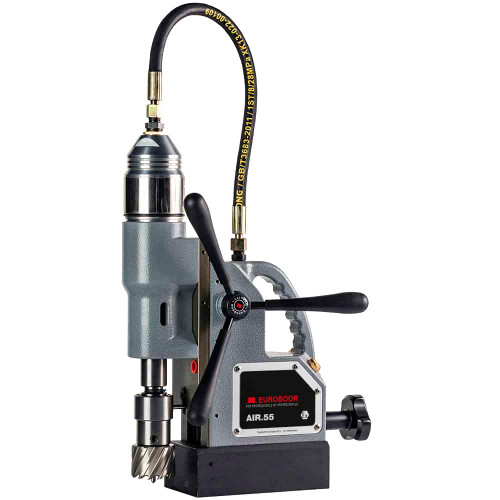

Pneumatic magnetic drilling machine
Ø 7/16″ – 2 3/16″ / 36.4 lbs
The portable Euroboor AIR.55 pneumatic drilling machine is equipped with an air-powered, spark-free motor and a non-electric, permanent magnet base. Connected to a compressor, it can be used for drilling on flat workpieces where electrical machines are less convenient or not allowed, especially in areas and spaces with potentially explosive atmospheres, such as offshore and petrochemical industries, as well as mining.
| Annular cutting | Ø 7/16″ – 2 1/16″ (HSS) Ø 7/16″ – 2 3/16″ (TCT) |
| Twist drilling | Ø 1/16″ – 15/16″ |
| Countersinking | Ø 7/16″ – 2 3/16″ |
| Length | 14 15/16″ |
| Width | 9 5/8″ |
| Height | 24 3/16″ – 27 3/4″ |
| Stroke | 6 9/16″ |
| Weight* | 36.4 lbs |
| Magnet | 7 3/16″ x 3 15/16″ x 2 3/16″ |
| Magnetic force | 1,984 lbs |
| Speed (no load) | 380 rpm |
| Spindle (Weldon) | MT3 3/4″ |
| Power source | Air, min. 6.3 bar, max. 8 bar, consumption 1.1 m³/min |
| *without handles |
