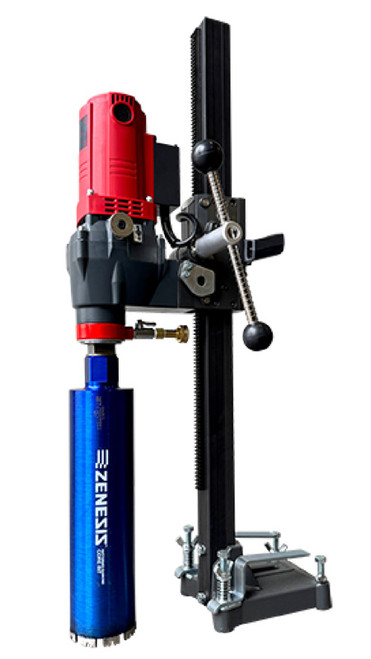

Description
- Spindle thread size 1 1/4″-7 (industry standard)
- Motor comes with slip clutch that can be easily adjusted from outside the motor
- 4 adjustable leveling screws for drilling uneven surfaces
- Water valve swivels 360 degrees
- Engineered for both vertical and horizontal drilling
- Standard pole: SB-594-1535
| Power | 120V, 18.5A |
| Max Bit Capacity | 10″ |
| Max Output | 2.4kW (3.2HP) |
| Spindle Thread | 1-1/4″-7 |
| Column Thickness | 1-15/16″ |
| Stand Height | 31-7/8″ |
| Carriage Travel | 19-7/8″ |
| Anchor Base | 5.6″ W x 7.9″ L |
| Clutch Type | Slip |
| Speed | 490/1150 RPM |
| Weight | 48 lbs. (21.7 kg) |
